Fittings > Forged flareless nut & ferrule
2 pieces kit, self flaring
-
Description - Tech Sheets
Primary material: Drawn brass EN 12164, Forged brass EN 12165, Copper grade Cu-DHP EN 12735-1
Standard and regulation reference: PED 97/23/CE, RoHS 2002/95/CE, REACH Reg. 1907/2006, EN378-2:2008, SAE-FIT, SAE 45° J513-92, FTP ASME B1.1-89, NPT ANSI B.1.20.1, BSP GAS ISO 228, BS 84
Refrigerant: Meant to be used in air-conditioners and refrigerating units that work with refrigerant proper to the group II Article 9, 2.2 of the PED Directive 97/23/CE, referring to the Directive 67/548/CEE. ( i.e. tested with the following: R12, R22, R134a, R404a, R407c, R410a, R502, R507 )Forged nuts
Flareless / Self FlaringGeschmiedete Mutter
Ohne BördelEcrous forgé
A sertir automatiqueBocchettoni forgiati

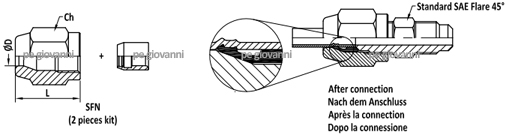

AutocartellantiDrawing
Zeichnung
Dessin
DisegnoCode
Code
Code
CodiceSAE Flare
Copper pipe
Kupferrohr Tuyau en cuivre
Tubo in rame
(Max 65 HRB)Dimension
Größe
Dimension
Dimensioni [mm]MWP,PS
[bar]ISO 8434-1
Wrench turns for tightening
Giri di chiave
per il serraggioList price
(€/each.)Prezzo di listino
(€/cad.)Ø
[in]Ø
[mm]Ø
BoreL
Ch
SFN
SFN4-4
1/4”
1/4”
-
6,5
22
17
100
min: 1-1/4
MAX: 1-1/2-
SFN4-6
3/8”
3/8”
-
9,7
23
22
64
-
SFN4-8
1/2”
1/2”
-
13,0
29
25
45
-
